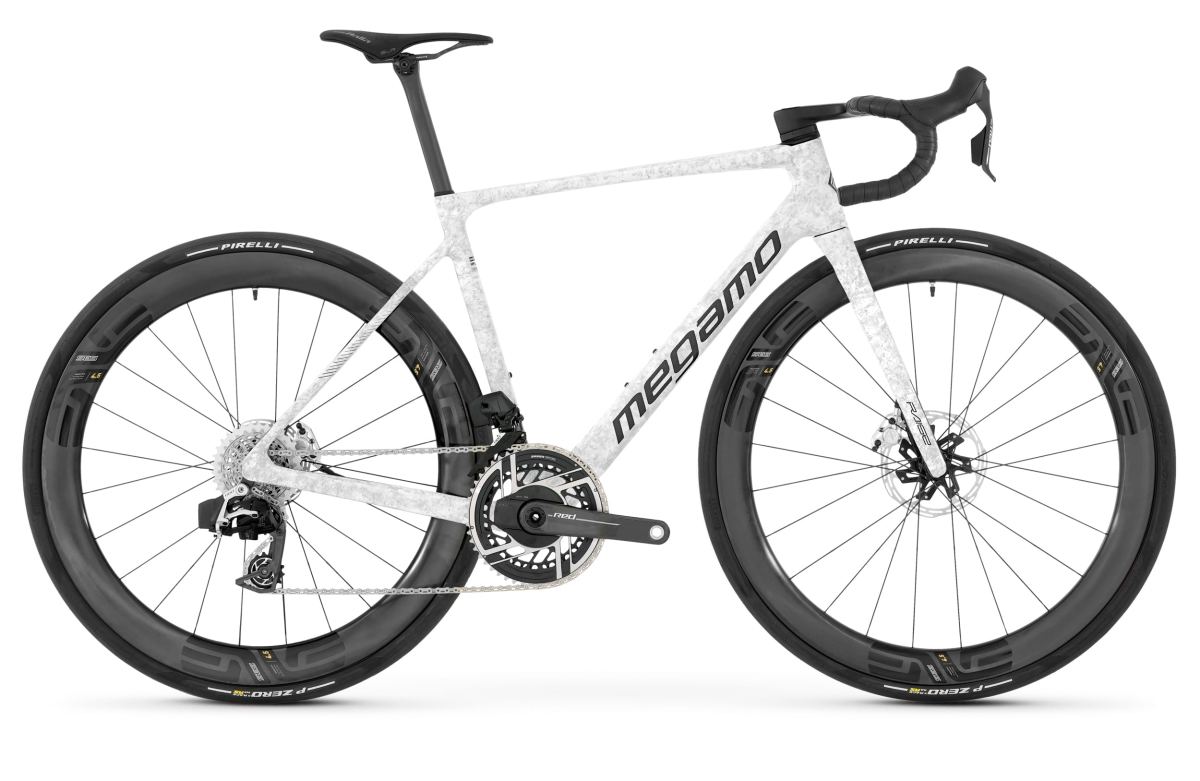

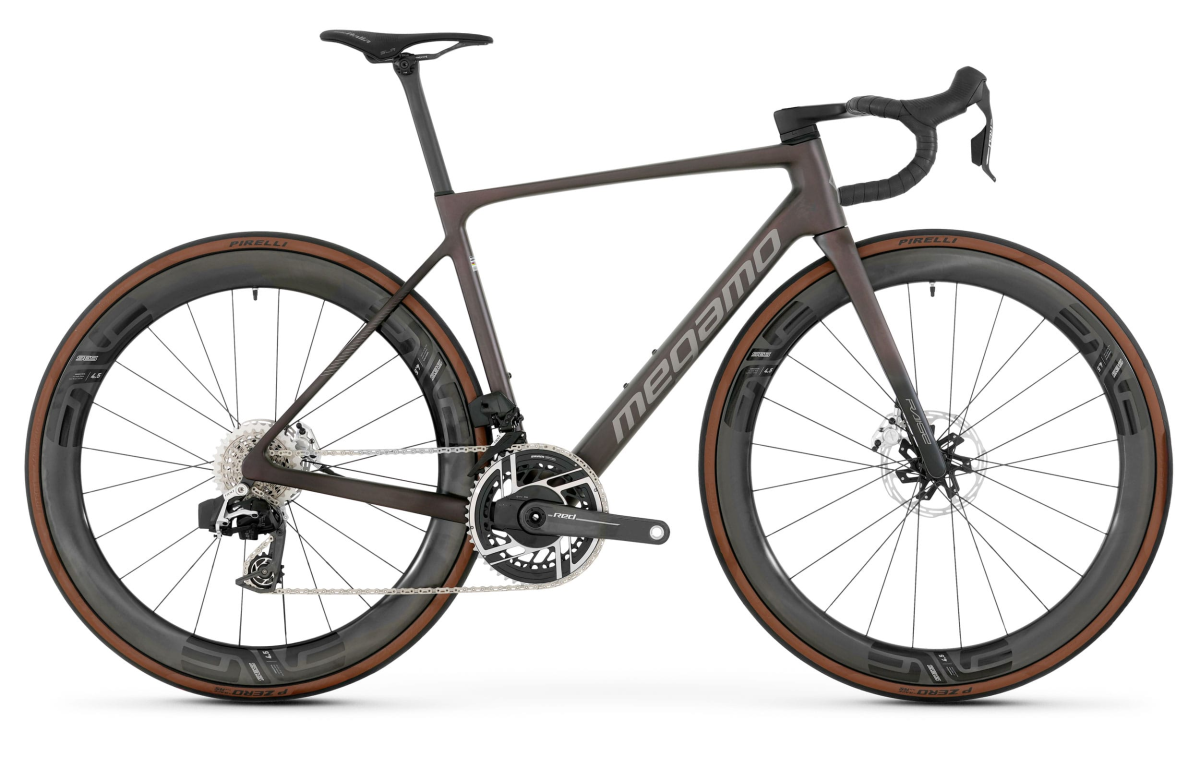

RAISE EDITION ENVE 26
11.999,00€
Formas de pago
Información técnica
Conjunto del cuadro
 | Cuadro | Carbon Advanced Composite Super Light Race Frame, Full Internal Cable Routing, Flat mount disc 12×142 |
 | Horquilla | Carbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12×100 |
 | Juego de dirección | Totally Internal Cable routing |
Transmisión
 | Cambio Trasero | Sram Red AXS, 12-Speed |
 | Desviador | Sram Red AXS, 2×12-Speed |
 | Manetas cambio | Sram Red AXS |
 | Plato | Sram Red Chainring 50-37T 2×12-Speed, SpiderPowermeter Crankset / XS size 160 mm / S size 165 mm / M size 170 mm / L size 172,5 mm / XL size 175 mm |
 | Cassette | Sram Red, 10-33T |
Frenos
 | Conjunto de frenos | Sram Red AXS, Hydraulic disc Paceline X 160 mm / 140 mm |
Componentes
 | Manillar | Carbon Full Integratted Internal Cable Routing / XS size 80 x 380 mm / S size 90 x 400mm / M size 100 x 400 mm / L size 110 x 420 / XL size 120 x 440 mm |
 | Tija sillín | Aerodinamic Advanced Carbon Seat Post / XS, S size 350 mm / M, L, XL size 400 mm |
 | Sillín | Fizik Argo R1 Lite |
*Megamo se reserva el derecho a modificar cualquier componente, por uno de igual valor en caso de ser necesario, sin previo aviso. |
Geometría RAISE ENVE EDITION (26)
XSSMLXL
A
T/T507527538 554572
B
C/S410410410410410
C
S/T442460482503535
D
H/T102115130145172
E
REACH376383384396402
F
STACK506521534550576
G
BB OFFSET6969696969
H
FRONT ANGLE71,75°72,5°73°73,5°73,5°
I
REAR ANGLE75.5º74.5º74º74º73.5º
J
WHEELBASE9709759809901003
80 x 37090 x 390100 x 390110 x 410120 x 430
A
Width hoods370390390410430
B
Width drops393413413433453
C
Stem Length8090100110120
D / E
Reach / Drop81 / 13081 / 13081 / 13081 / 13081 / 130
F
Stem Angle10.5º10.5º10.5º10.5º10.5º
G
FLARE3.3º3.3º3.3º3.3º3.3º
H
GPS HOLES2727272727
I
HOLES TO FRONT2121212121
FIT GUIDEX-SMALL
< 165
SMALL
165 – 172
MEDIUM
170 – 180
LARGE
180 – 188
X-LARGE
188 <
